The image a buyer signs against

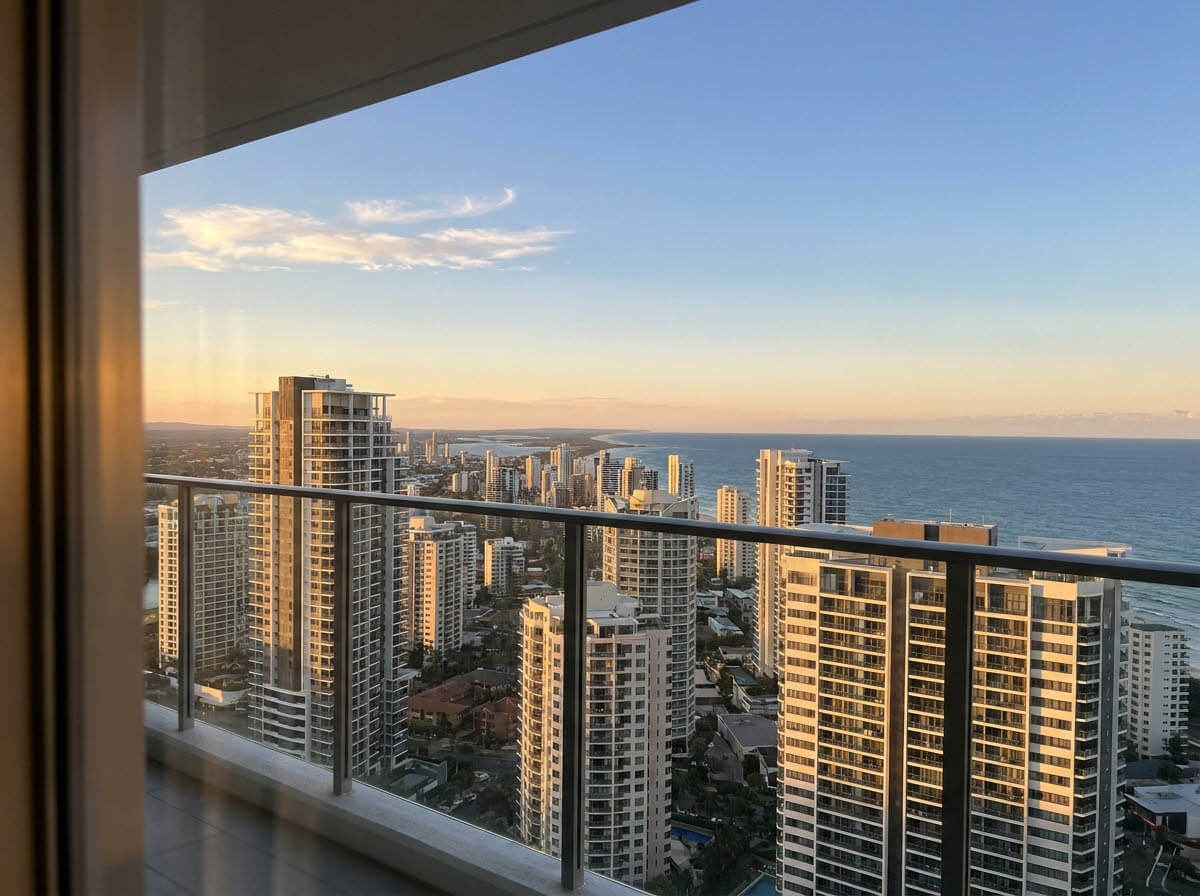

The image a buyer signs against in a display suite, framed image on the wall. Caption underneath says “View from Level 22.” Shows the ocean, a clean corridor between two neighbouring towers, a strip of ocean past the rooflines.

Buyer signs.

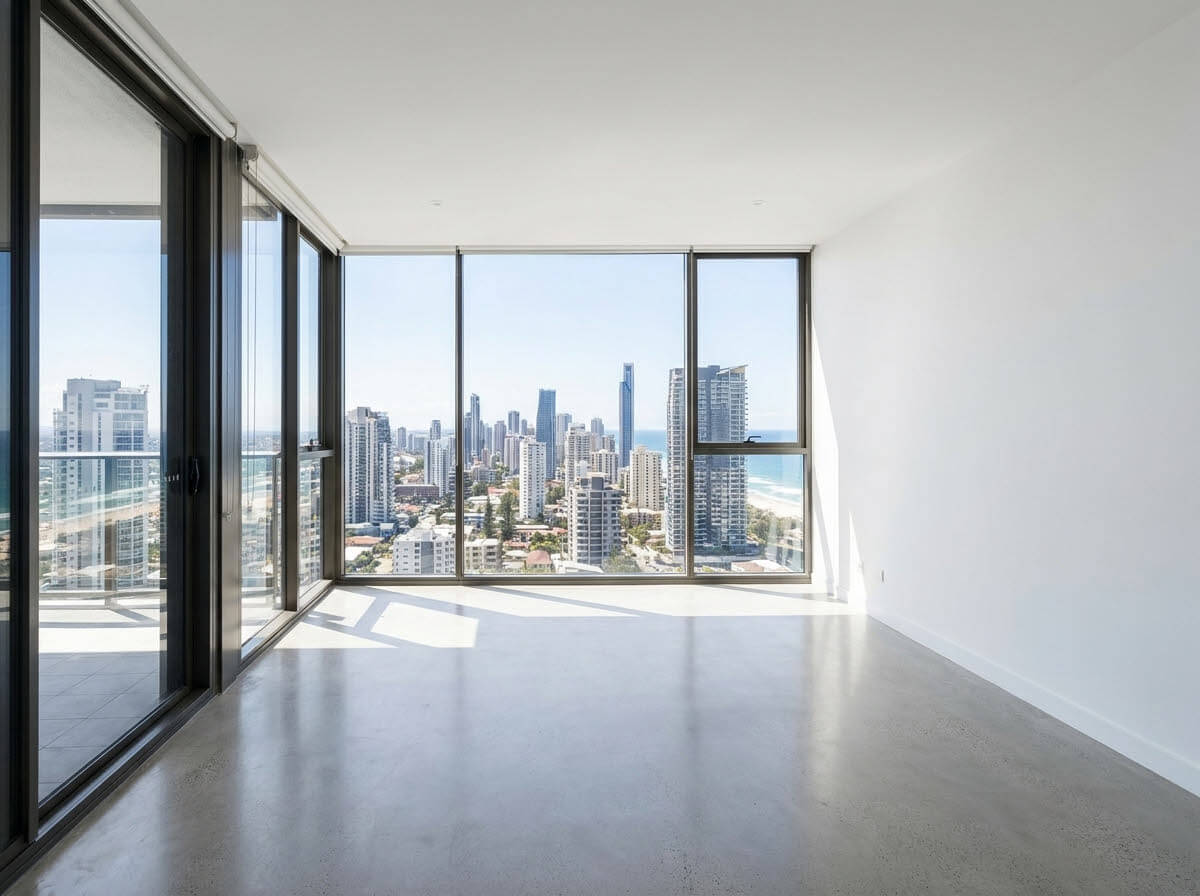

Eighteen months later they walk into their apartment for the first time. Towers are there. Ocean is gone. Blocked by a parapet they could not see in the marketing image.

Nobody misrepresented anything on purpose. The image was real. It was just shot from the wrong height.

This is the quiet problem with a lot of off-the-plan view marketing in Australia, and almost every time I have unpicked one of these situations, the cause is the same. The capture height was wrong by a couple of metres. That was enough.

What AHD is

AHD stands for Australian Height Datum. It is the national reference point for vertical measurement. Every height in every survey, every set of architectural drawings, every approved DA, all of it gets measured from AHD zero.

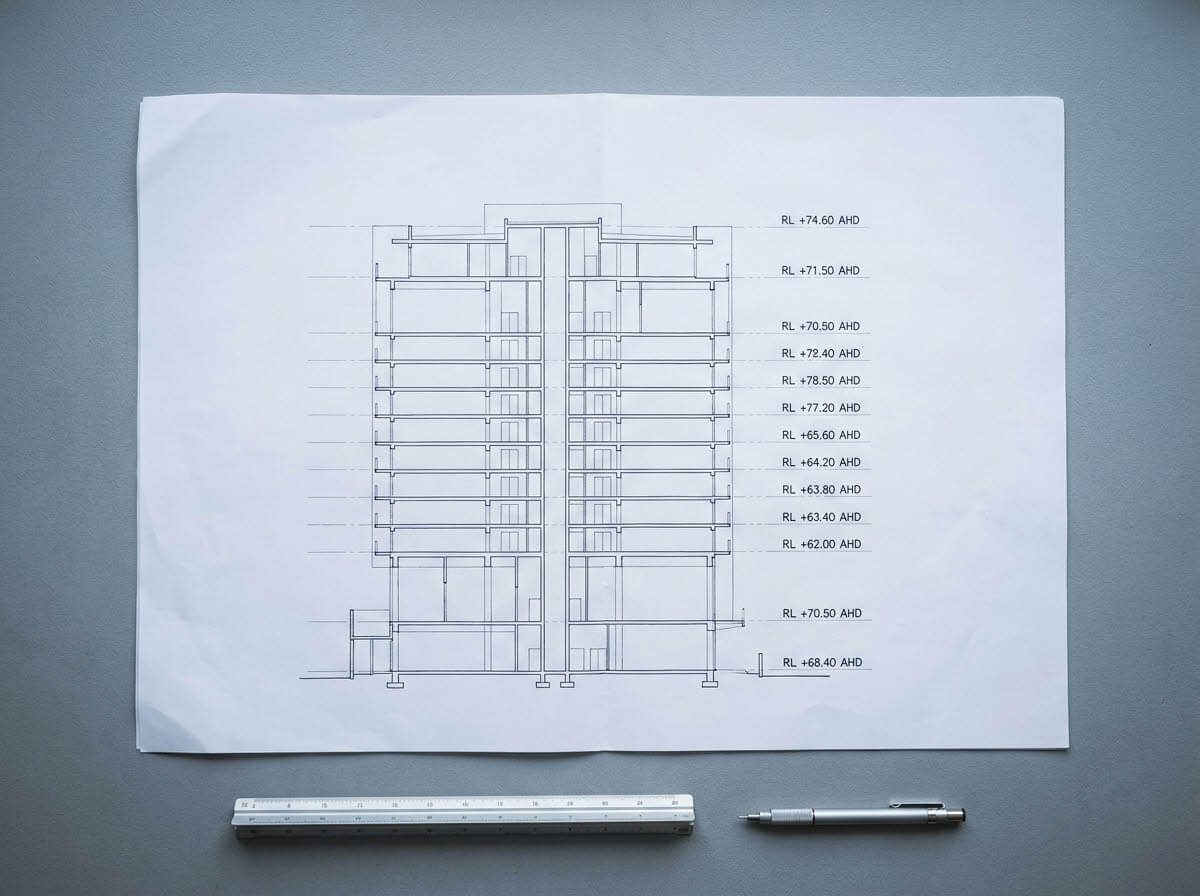

When the architect specifies that Level 22 sits at RL +68.40 AHD, that number is exact. It is the elevation, in metres above the national datum, of the finished floor level of that storey. The view from that floor exists at that height. Not two metres higher. Not three metres lower.

Most marketing view imagery is not captured at AHD-accurate height. It is captured at a height the pilot estimated from the ground, or from a barometric sensor that drifts when the weather changes, or matched to a roofline on a building next door that was itself only roughly measured.

A standard consumer drone, flown by a competent pilot without RTK positioning, can be vertically inaccurate by two to four metres. Sometimes more on a hot day or in unusual pressure conditions. That error is invisible in the image. It only shows up at settlement.

What two to four metres actually changes

On a low-density site with open outlook in every direction, a few metres of vertical error is probably tolerable. Nobody is going to dispute a paddock view.

In a dense urban context, two to four metres is the difference between two completely different views.

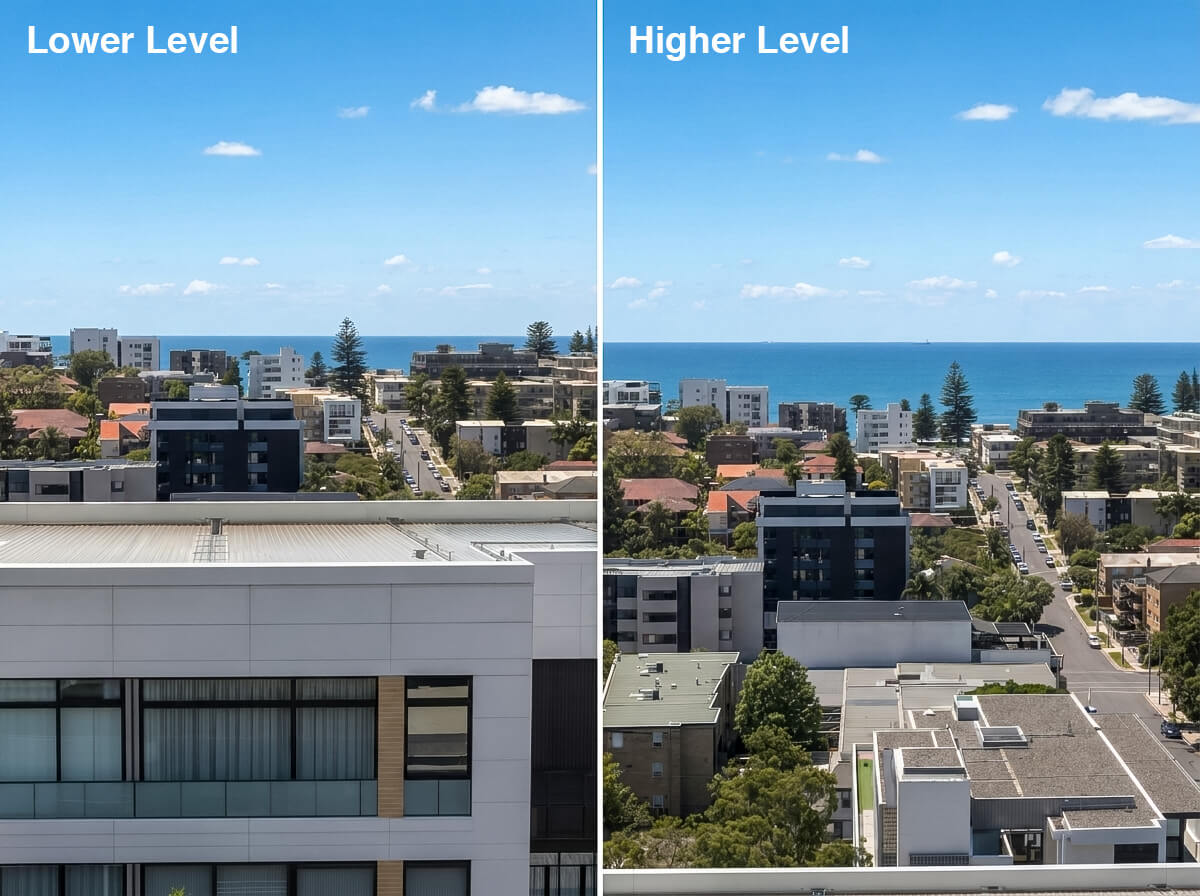

Two metres lower and a neighbouring parapet drops into frame, cutting off an ocean corridor. Three metres higher and a view opens up that will not actually exist when the building is finished. Four metres in either direction can change which buildings sit in front of which other buildings, which gaps stay open between towers, which rooflines intrude.

The image still looks like a view. The geometry behind it is wrong.

Buyers do not measure heights. They measure outcomes. They compare the view they were sold against the view they actually have. When those two things diverge by enough for a human eye to notice, you get problems. Sometimes informal grumbling. Sometimes formal complaints. Occasionally legal.

Why this happens so often

Three reasons, in order of how often I see them.

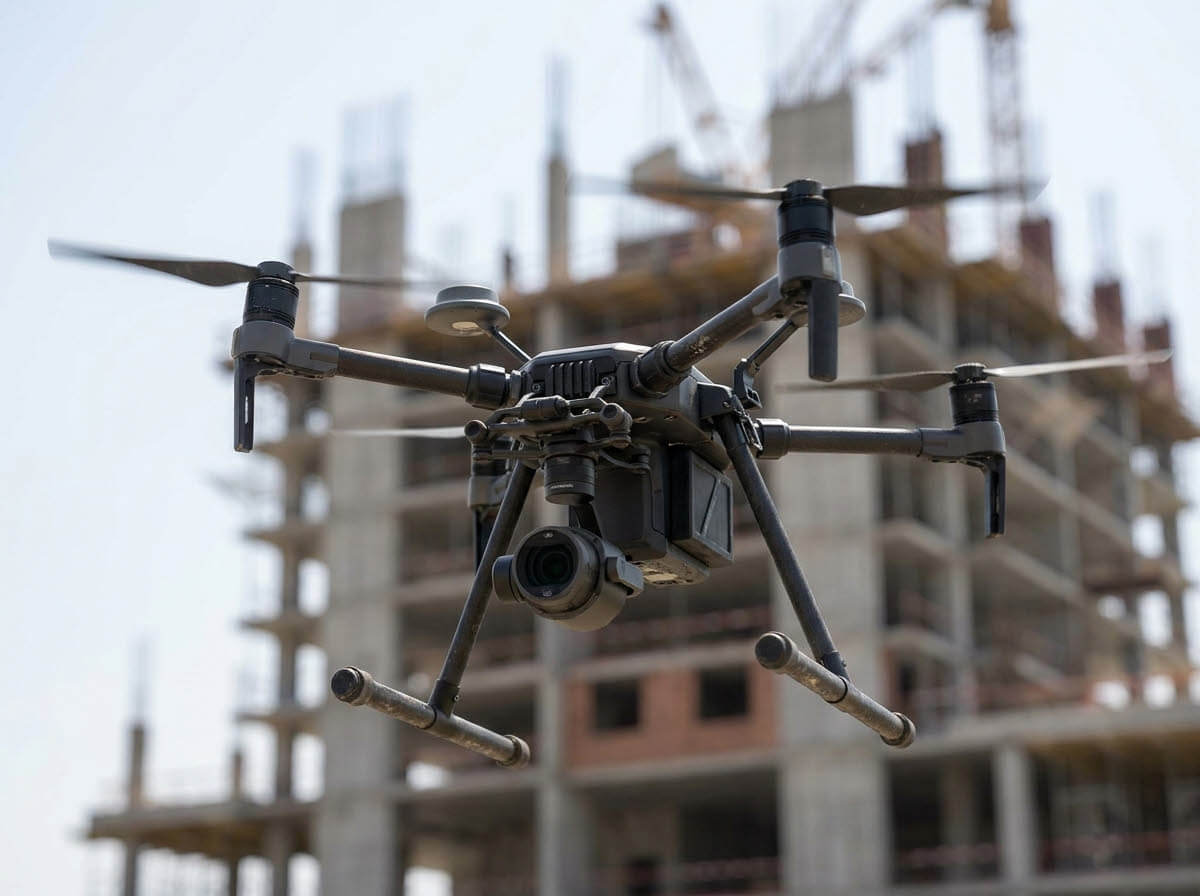

First, most aerial operators do not have the equipment. RTK (Real Time Kinematic) positioning corrects GPS to centimetre accuracy in three dimensions. It is enterprise gear, not consumer gear. Most aerial photographers are flying drones that simply cannot do this, regardless of how good the pilot is.

Second, even when the equipment is on hand, the workflow is more involved than people realise. Capturing at a precise AHD level means referencing the architectural drawings, calculating the correct flight altitude relative to the local survey, and verifying position before each capture. It is slower than flying up to roof height and pressing the shutter. If the brief does not specifically ask for AHD accuracy, operators will not volunteer it. There is no financial reason for them to.

Third, and this is the real reason it persists, the error is invisible at the marketing stage. Buyer cannot check it. Sales team cannot check it. Developer rarely thinks to check it. The image goes into the brochure, onto the display wall, onto the website. It only becomes a problem when the building is up and the views are real, and by then the contracts are signed.

What defensible view imagery actually looks like

For a marketing image to hold up against a future view dispute, three things have to be true.

The capture position is referenced to AHD, not to ground level, not to a nearby roofline. The pilot has the architectural drawings or a survey reference for the floor in question. The drone is capable of positioning to that height with verifiable accuracy.

The capture position is recorded. Latitude, longitude, and AHD altitude, stored against the image file. If a dispute comes up two years later, the developer can show that the marketing image was taken from the correct location. Not “approximately.” Exactly.

The capture is repeatable. If the same view needs to be re-shot later, for a different unit on the same floor or for a construction-stage update, the operator can return to the same point in three-dimensional space. Preset waypoint missions stored against the project make this possible, and they make every subsequent shoot faster and more consistent than the last one.

This is not a higher-resolution drone or a better lens or a more talented pilot. It is a different category of work. It is survey-grade aerial capture, treated as marketing imagery.

Why most developers have not been asking for it

The industry has not had to. View disputes have historically been settled with disclaimers, contract language, and an assumption that buyers accept some variance between marketing imagery and final outcome.

That assumption is wearing thin. Buyers are more sophisticated than they were ten years ago. They are more litigious. They are more willing to challenge a view that does not match what they were shown. Sales teams are answering harder questions about exact outlooks and exact levels. Marketing managers are being asked to stand behind imagery they did not commission and cannot verify.

The developers I see getting ahead of this are treating view imagery as a documentation exercise as much as a marketing one. The image still has to be beautiful. It also has to be true.

What to ask

If you are about to commission view imagery for an off-the-plan campaign, the single question worth asking the person you are hiring is how they reference capture height.

If the answer involves “estimate,” “approximately,” or “we match the floor levels visually,” you are buying marketing material. It might look great. It might not hold up at settlement.

If the answer involves AHD, RTK positioning, and a recorded capture position, you are buying something different. You are buying a frame that is true.

That distinction matters before the brief gets signed off, not after.
